Datos del producto:
|
| Max.load: | 300kg | Altura vertical: 3400m m o 3900m m: | 3400m m o 3900m m |
|---|---|---|---|
| Cantidad de lechón: | 2 o 4 o 6 o 8 lechones | ||
| Alta luz: | Glass Vacuum Spreader Sucker,Curtain Wall Vacuum Spreader Sucker,360 Degree Vacuum Spreader Sucker |
||
Electric Curtain Wall Glass Spreader Vacuum Spreader Sucker 360 Degree Rotating and Flipping Spreader Vacuum Suction Hoi
LJXJ300 Glass Loading and Unloading Lifter Cantilever Crane

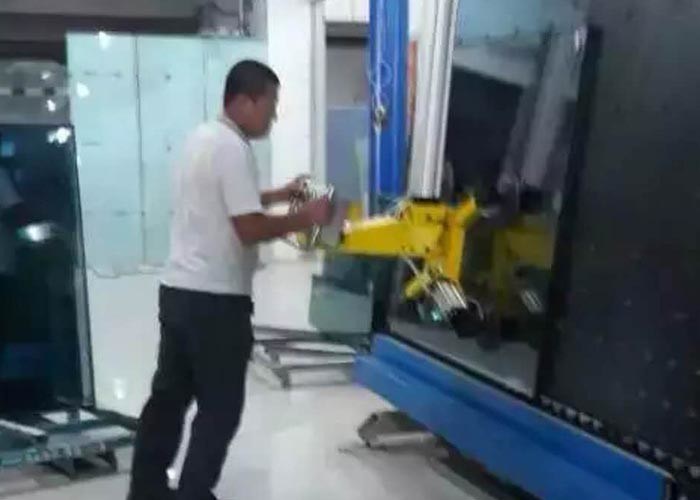

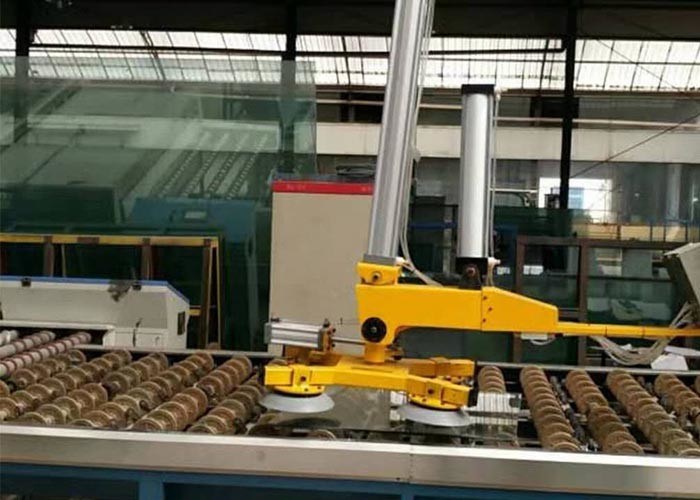

Pneumatic glass handing manipulator loading and unloading lifter is operated by using compressed air. The device does not use electricity and is safe and reliable, easy to operate. It is an essential glass handling tool for a modern glass processing industry. The air flowing through the vacuum generator causes Vacuum Pressure to suck the glass. A cylinder stroke is acted by receiving the command signal from the compressed air in an inlet pipe. The device is commonly used for glass handling work in glass factory processing lines, such as grinding, cleaning, tempered, laminated, insulated, etc.
LJXJ300 Glass Loading and Unloading Lifter Cantilever Crane
Pneumatic glass handing manipulator loading and unloading lifter is operated by using compressed air. The device does not use electricity and is safe and reliable, easy to operate. It is an essential glass handling tool for a modern glass processing industry. The air flowing through the vacuum generator causes Vacuum Pressure to suck the glass. A cylinder stroke is acted by receiving the command signal from the compressed air in an inlet pipe. The device is commonly used for glass handling work in glass factory processing lines, such as grinding, cleaning, tempered, laminated, insulated, etc.
Benefits & Advantages
●Mechanical part:
(1) The total length of the main beam of the suction hoist is designed to be 2000mm, and the upper part of the middle part is welded and sealed with a plate, and the middle part is used as a vacuum accumulator. The air tightness test is carried out after welding to ensure no leakage. When the equipment is suddenly powered off, it is still guaranteed to be able to reliably adsorb the plates for at least 20 minutes, and will not cause safety accidents such as equipment damage (the European CE standard is to maintain 10 minutes)

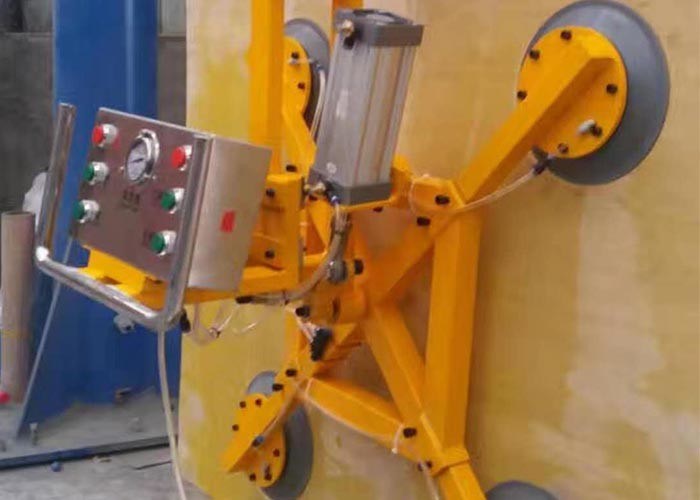

(2) This equipment is equipped with 6 suction cups with a diameter of 360mm for different sizes of glass. The position of each suction cup on the beam is adjustable to facilitate the adsorption of glass of different sizes.
●Electrical part:
(1) A vacuum pressure switch and a buzzer alarm unit are installed on the vacuum hoist. When the vacuum system pressure does not reach the set pressure, or when a power failure occurs, the alarm unit will control the red warning light to light up and the buzzer to sound. , Prompt the operator to deal with it in time.
●Vacuum part:
(1) The suction hoist adopts a German oil-free rotary vane vacuum pump, with a pumping capacity of 8m3/h, a large vacuum degree of over 85%, energy saving, compact and lightweight, no maintenance, etc.;
(2) The whole set of equipment is equipped with 6 vacuum suction cups, multi-point adsorption to ensure that the plate can maintain a high level during the handling process without tilting;
(3) The suction cup material is nitrile rubber, with a diameter of 360mm, oil (benzene), durable, acid and alkali resistance, and can effectively adsorb with FRP to produce a true single suction cup level. Theoretical large suction force = effective area (physical product * coefficient) * calculated pressure (0.6bar); (0.18*0.18*3.14)*0.6*10000=610.416, which is approximately 610.4Kg. According to the 4 times safety factor, the actual allowable suction power of the suction cup is 610.4/4=152.6Kg. The total suction power of 6 suction cups is 600kg. Note: The vacuum suction force mentioned in the above table is calculated under 60% vacuum degree. Under normal working conditions, the system vacuum degree can reach more than 85%;
(4) The vacuum pressure sensor is made of Japanese Panasonic brand, and the alarm pressure level is set to 60% vacuum;
(5) Each suction cup is equipped with a manual ball valve to control the opening and closing, which ensures that the same equipment can be applied to various specifications of plates;
(6) The upper and lower parts of the sucker rod are equipped with a spring. When the plate is not flat, the spring acts as a buffer to make the sucker evenly stressed, so as to ensure the safety and reliability of the suction cup.
● Overall:
(1) According to the European Union DIN EN 13155 vacuum system design for the outdoor building curtain wall installation site.
(2) Horizontal handling, electric flipping and vertical handling.
(3) Flexible design, can be applied to the handling of different sizes of FRP.
