Datos del producto:
|
| Nombre: | Lavado de la vertical y secadora | Material: | Pieza conmovedora del agua del stell de Stailess |
|---|---|---|---|

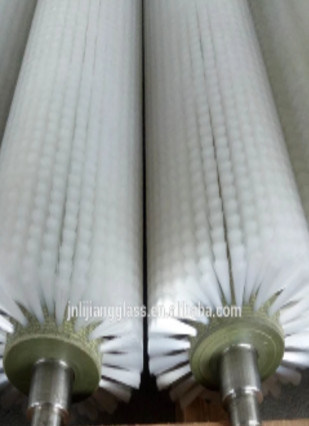

| Ventaja: | Cepillo para bajo-e | Característica: | Opration fácil |
| Alta luz: | máquinas de proceso de cristal,línea de cristal aislador |
||
Automatic Vertical And Horizontal Washing And Drying Machine Easy Opration Glass Cleaning
LIJIANG GLASS- FOR WORLD GLASS MACHINE USER SERVICE
Glass Washing Machine LJLBQJ2500
►The water tank system and water heating fuction
►Using Europe's advanced anti-noise system to create a good working environment for employees.The noise can be controlled below 90 decibels by using nylon gear and sponges.

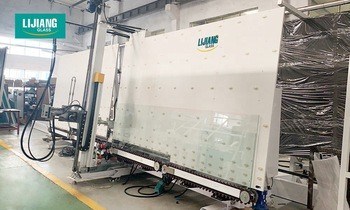

Vertical Insulating Glass Sealing Robot LJTJ2540
Main Features:
• Min & Max glass sizes can be optional
• Adopt 8 servo motors
• Adopt Japan servo control system with stable performance
• Automatically measure glass size, glue depth and glue speed with linear adjustment
• Adopt timing belt to keep smooth convey with accurate position
• Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working
• The glass corners are full without air bubbles, smooth surface, no need to
• Full automatic and high-efficiency machine
• Automatically repair glass corners with beautiful surface
• Smooth convey without scratch and pollution
• Single-function parts are equipped with manual functions, easy adjustment

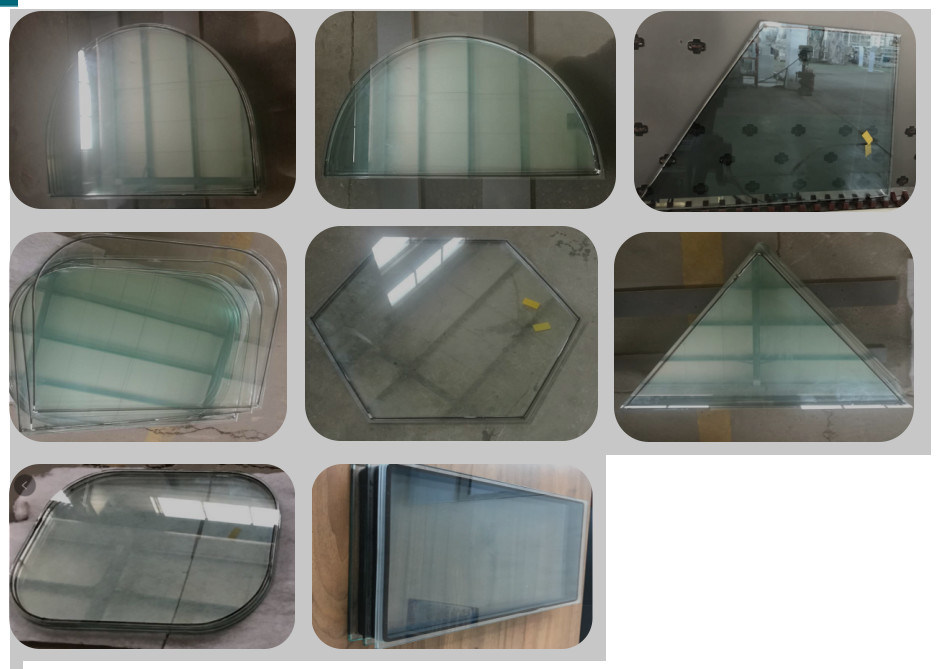

• Can coating more than 8 kinds of shaped glass, include Semicircle. Trapezoidal. Parallelogram. Circular. Polygon, etc (Optional)
• Seal stepped glass fully at once (Optional)
• Can seal stepped IG with four sides (Optional)
• Adopts double pumps device to use two kinds of different sealants, such as silicone, polysulfide and silicone structural sealant (optional)
Technical data
| Max. glass size | 2500*4000mm (Optional) |
| Min. glass size | 300*300mm |
| Glass thickness | 12-50mm |
| Working speed | 5-40m/min |
| Air pressure | ≥0.6MPa |
| Squeeze pressure | 32MPa |
| Voltage power | 380V 12kw |
| Overall dimension | 11000*2000*3500mm |
Electrical parameters
| NAME | ORIGIN | BRAND |
| Servo motor | Japan | YASKAWA |
| Servo driver | Japan | YASKAWA |
| CPU | Japan | YASKAWA |
| Low voltage component | Germany | SIEMENS |
| Guideway | Taiwan | HIWIN |
| Switching power supply | Taiwan | MW |
| Sensor switch | Korea | AUTONICS |
| Pneumatic component | Japan | SMC |
| Touch screen | China | GAOSHAN |
| Servo motor | Japan | YASKAWA |
| Servo driver | Japan | YASKAWA |
