Datos del producto:
|
| Nombre: | Lavadora de cristal vertical | Abastecimiento de agua: | Consumo de agua: conductividad 0.5t/h: los 40μs/cm |
|---|---|---|---|
| Suministro de aire: | Flujo: 0.8m/min | Presión de aire: | ≥0.8MPa |
| Dimensiones: | aproximadamente 6260*4800*3100 | Peso: | 3940kg |
| Alta luz: | Máquina abierta superior de la limpieza de cristal,máquina de la limpieza de cristal 0.5t/H,limpiador de cristal automático abierto superior |
||

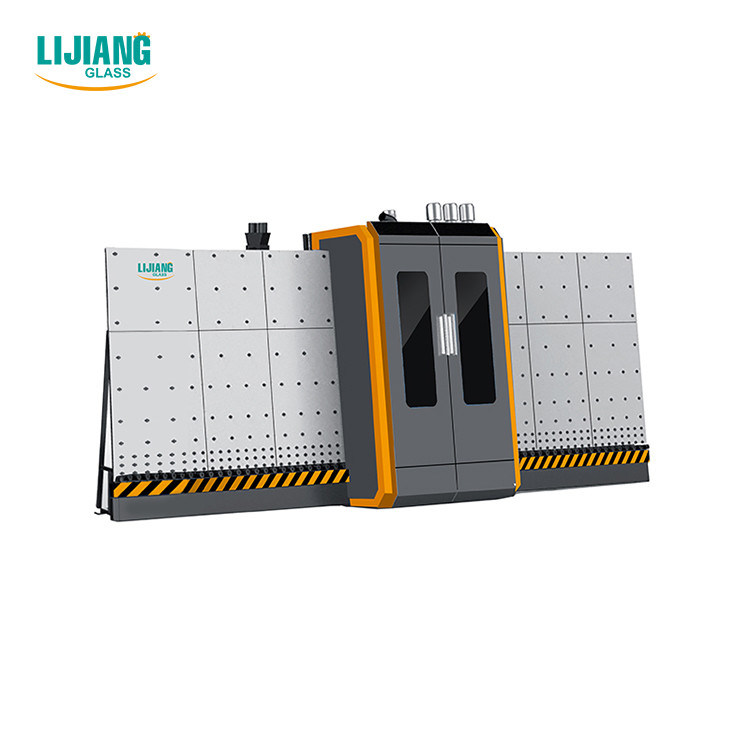

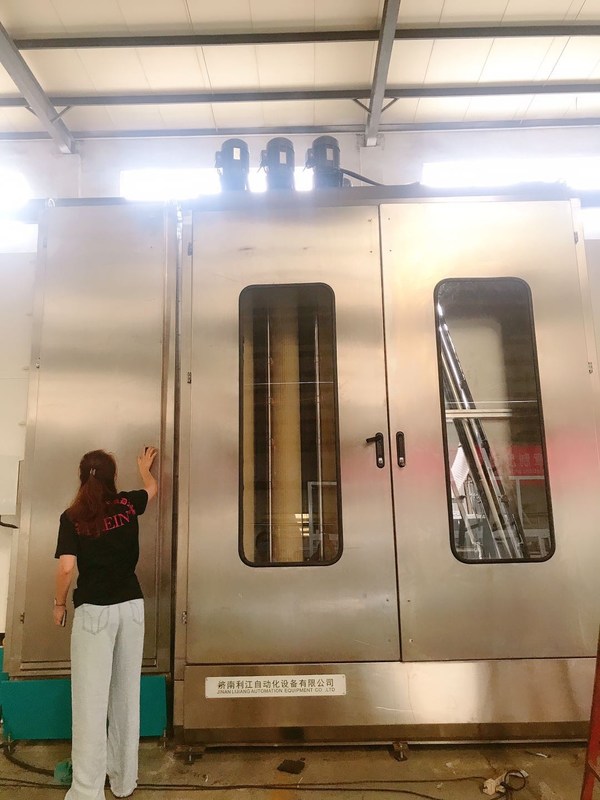

Top open glass cleaning machine automatic glass cleaner China vertical glass washing machine
Main feature of fully automatic bar bending machine
l Automatic detect low-e & high performance glass
l Wash online and offline low-e glass, automatically recognizes Low-e film
l The air knife can automatically adjust the width according to the glass thickness
l Using intelligent intermittent energy-saving working methods
l Hierarchical type washing system
l Water tank automatic temperature control, water replenishing system
European silencer system&stainless steel drying system
Technical data of fully automatic bar bending machine
| Max.glass size(Optional) | 2500*3500mm |
| Min.glass size | 280*450mm |
| Glass thickness | 3-15mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 15m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Dimensions | approximately 6260*4800*3100 |
| Weight | 3940kg |
| Total power | 3P 31KW |
5. Automatically recognize glass thickness
1). There is a universal joint device, when the glass thickness was changed, the wind knife will move forward and backward to adjust the distance so that the relative distance between the wind knife and the glass is constant, so as to avoid damage to the glass due to the changes of the glass thickness.
Inspection section
1.The checking part uses LED tubes to check whether the glass is clean or not.
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring
city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.
The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.
With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.
