Datos del producto:
|
| Tamaño de doblez máximo: | 2000 * 2000 | Tamaño de doblez mínimo: | 250 * 200 |
|---|---|---|---|
| Suministro de aire: | 0.65Mpa | Nombre: | Barra de aluminio del espaciador que dobla para aislar la máquina de vidriero |
| Alta luz: | dobladora industrial,dobladora de la barra del espaciador |
||

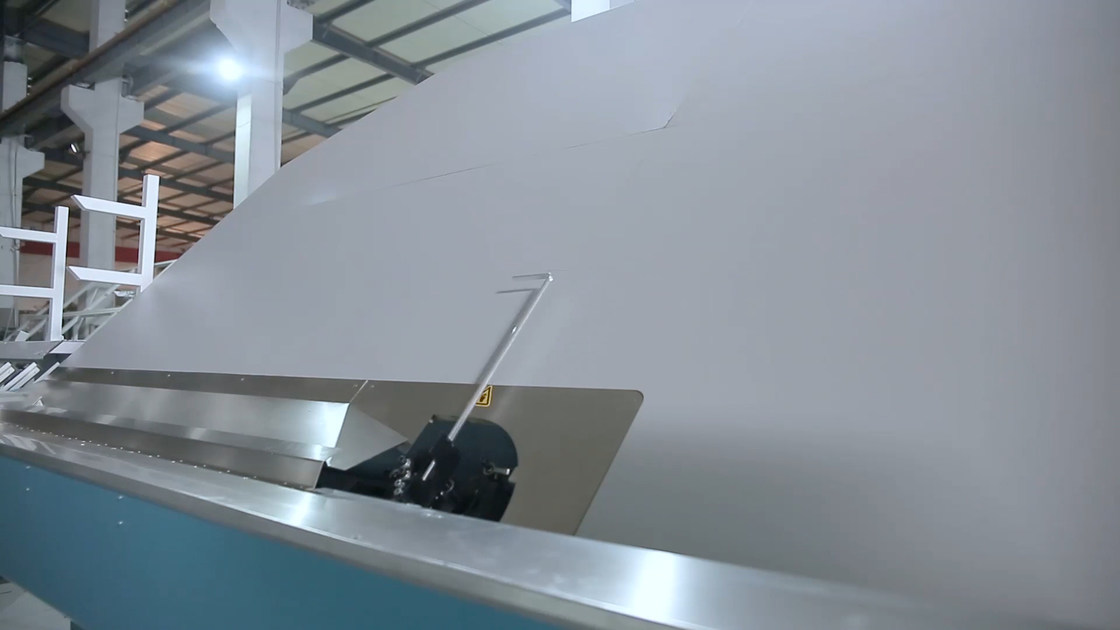

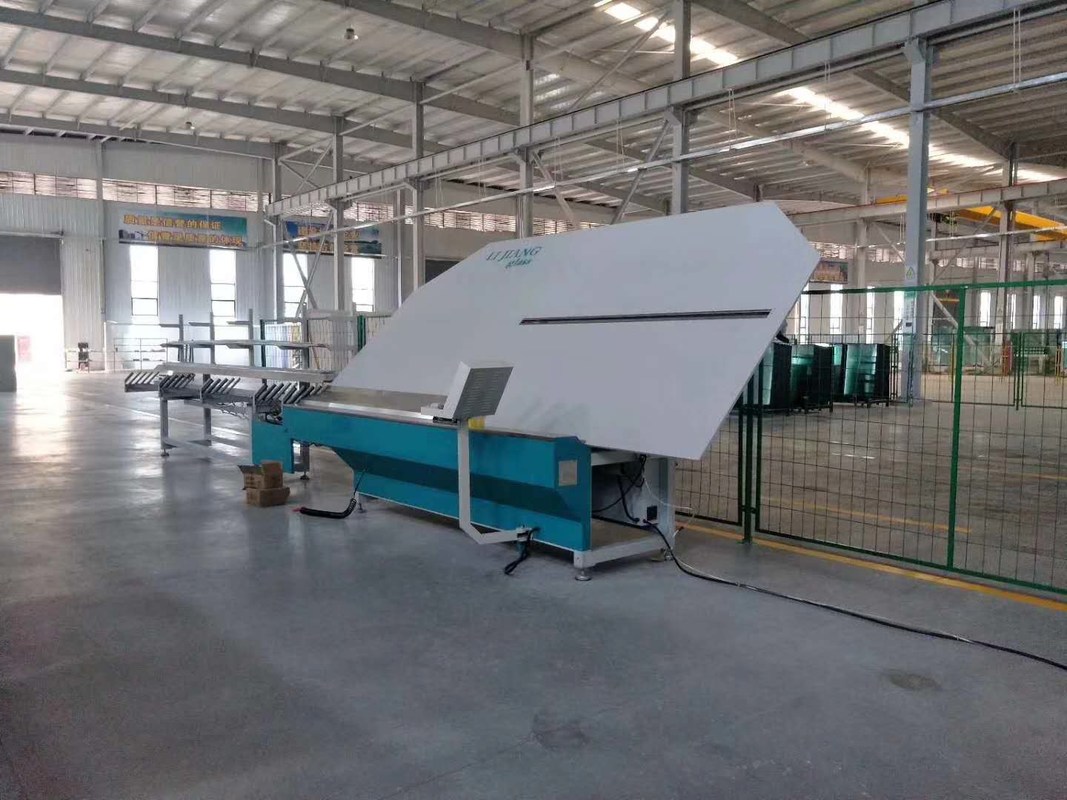

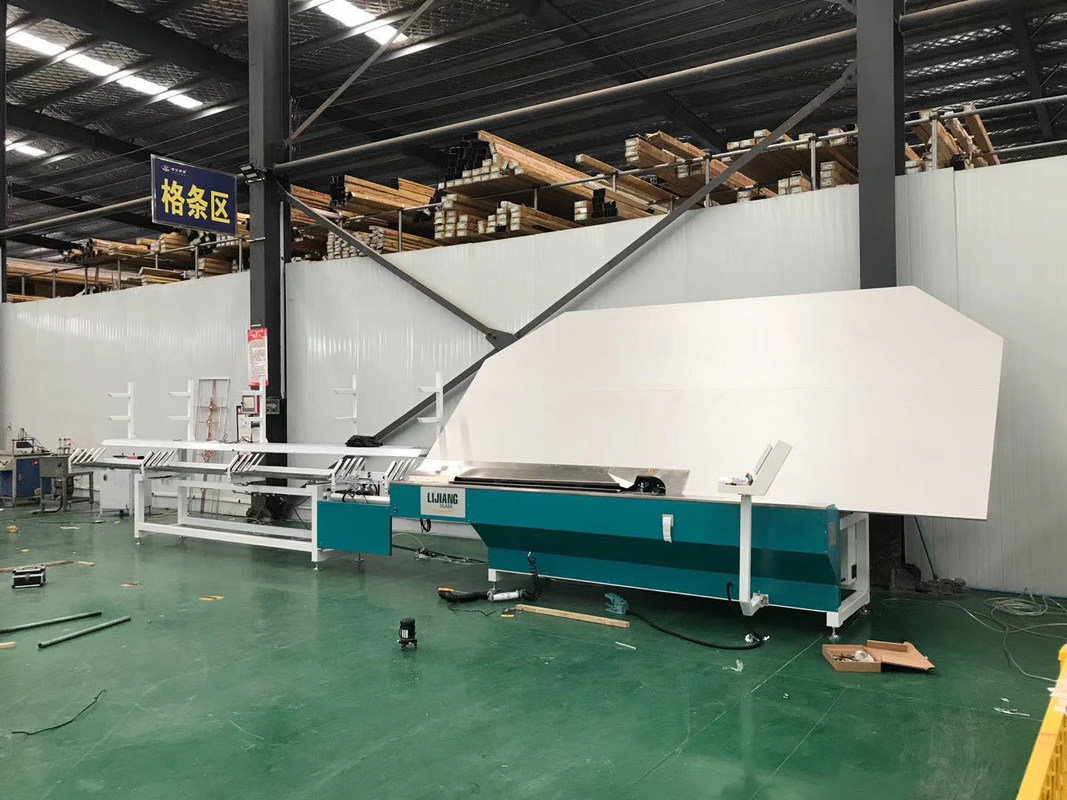

Automatic roll bending machine is a special equipment for the production of aluminum insulating glass units, which replaces the traditional production technology. This equipment can simultaneously produce various polygonal convex aluminum frames with one strip of aluminum, thereby increasing the strength of the aluminum frame and thus improving the sealing effect of the insulating glass.
Equipment details
Adopted Siemens PLC control system
There are 4 Siemens servos
We have 4 sets of shelving in which spacers of different sizes can be stored. Use Siemens servo drives to replace different racks.
Aluminum spacers are automatically cut and shipped
Continuously curved spacer frame
Automatically avoid joint corners when folding or cutting
Instead of gripping the pad from the bottom, the machine grabs the pad from the top, solving the old-fashioned flipping problem.
Uses industrial computer technology to enable industrial computer technicians to draw on-site and directly stack the drawn graphics.
A special mechanical manual device is used to fold the frame with a large step
Technical data
| Max.bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Leading Technology
Company Information
Founded in 2009, Kation-Tech specializes in R&D, production and sale of insulating glass machines and related auxiliary equipment for the deep glass processing industry and the door and window construction industry. The basis for professional processing of insulating glass machines, aluminum-plastic door and window machines and related auxiliary materials, etc. Until 2019, we were exporting glass machinery and materials to America, South America, Europe, the Middle East, India, etc., in nearly 30 countries and regions. We have established a perfect international business relationship with 10 powerful agents and strived together to build an international brand famous in the world. Kation-Tech, with know-how, profession and honesty, wins the future with you together!
Electrical parameters
| NAME | BRAND | NAME | BRAND |
| PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
| Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
| Servo motor | GERMAN SIEMENS | Solenoid valve | Taiwan AIRTAC |
| Servo driver | GERMAN SIEMENS | Switch power | Taiwan TEND |
| Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
| Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |
