Datos del producto:
|
| Certificación: | CE | Nombre: | La doble vidriera vertical sellada aisló la cadena de producción de cristal aislada las unidades de |
|---|---|---|---|
| Fuente de alimentación: | 380V, 50HZ o modificado para requisitos particulares | Velocidad que se lava: | 2-10m/min |
| Uso: | vidrio de los muebles, vidrio constructivo | ||
| Alta luz: | 10m/Min Insulating Glass Equipment,Equipo de cristal aislador sellado,máquinas de proceso de cristal 10m/Min |
||

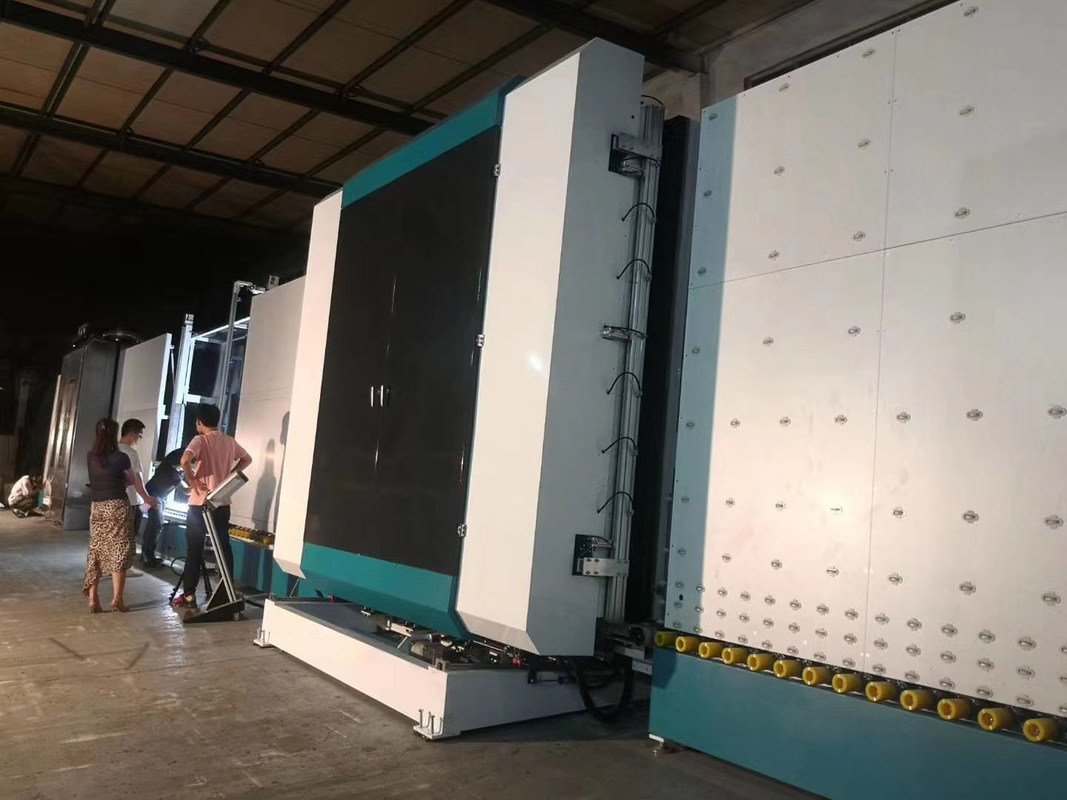

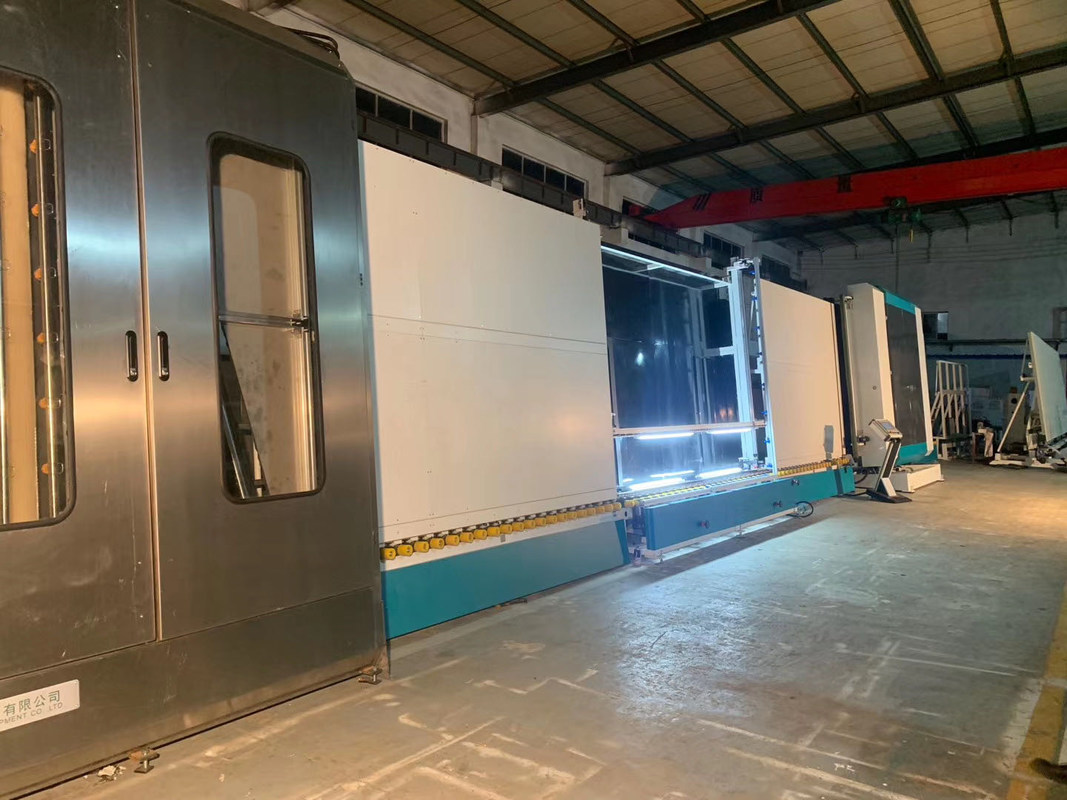

Vertical double glazing sealed Insulated glass units insulated glass production line
The insulatiing glass machine can complete the following functions: Glass cleaner, Aluminum frame placement, normal double glass, three ordinary glass, shaped glass and the second double glass suppressor.
Insulatiing glass machines are specialized equipment in the production of aluminum strip insulation glass, which has the advantages of small footprint, high efficiency, reliable performance, and easy maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1, European design concept, easy and smart operation;
2, world-famous brands of key components, ensure stable operation and long service life;
3, designed for high quality glass processing, such as reflective glass, Low-E glass, tempered glass and laminated glass;
4, large glass processing scale, various models and customizations available;
5, large output capacity, 1000 outputs in one working day;
6, applicable to double layers, triple layers, tread boards and abnormal shape insulating glass;
7, Automatic argon water gas filling during glass plate assembly process;
8, PLC control system, touching screen operation;
Electrical parameters
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
| JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | ||
| Power Supply | 380V,50HZ or customized |
| Total Power | 40 KW |
| Washing Speed | 2-10m/min |
| Max. working speed | 45m/min |
| Min.Glass size | 450*280mm |
| Max. Glass size |
2500*3200 2500*4500(second pressing) |
| Washing glass thickness | 3-15mm |
| Max. Insulating glass thickness | 50mm |
| Weight | 8000kg |
| Dimension (L*W*H) | 23600*3500*3700mm |
