Datos del producto:
|
| Nombre: | Cadena de producción de cristal automática cadena de producción de cristal esmaltada doble equipo de | Fuente de alimentación: | 380V, 50HZ o modificado para requisitos particulares |
|---|---|---|---|
| poder total: | 40 KILOVATIOS | Velocidad que se lava: | 2-10m/min |
| Tamaño de cristal máximo: | 2000*2500m m | ||
| Alta luz: | máquina de cristal de la doble vidriera 10m/Min,Máquina de cristal moderada de la doble vidriera,10m/Min aisló la máquina de cristal |
||

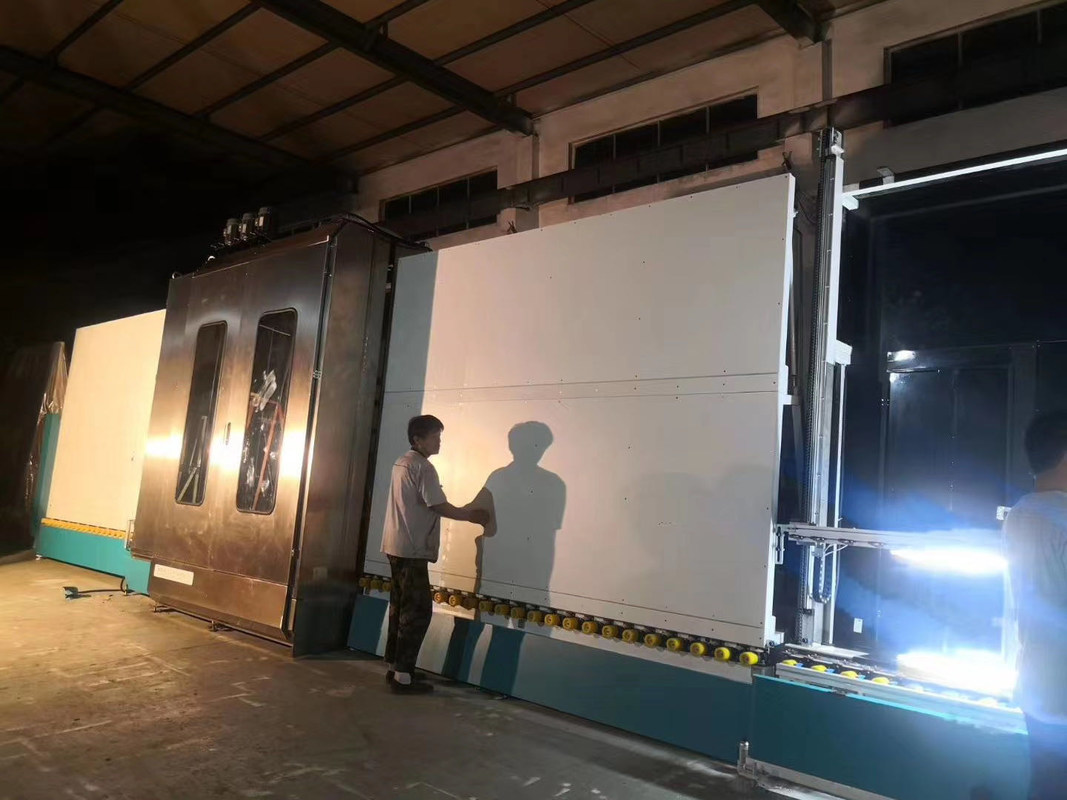

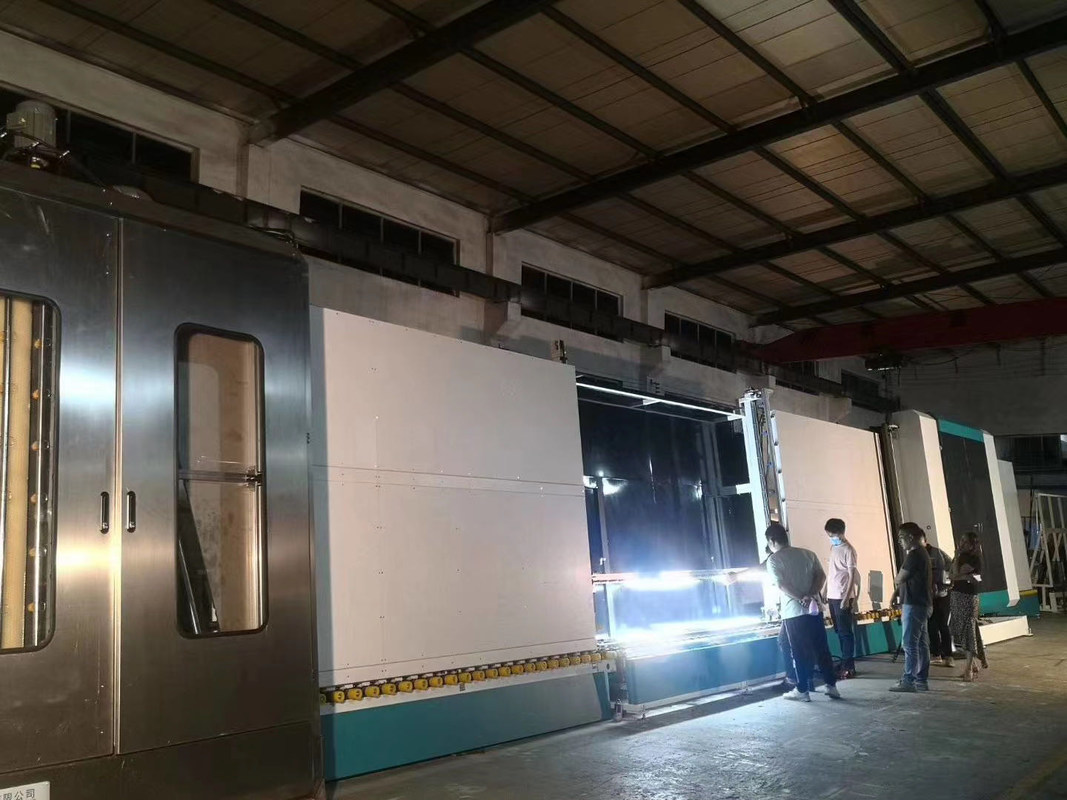

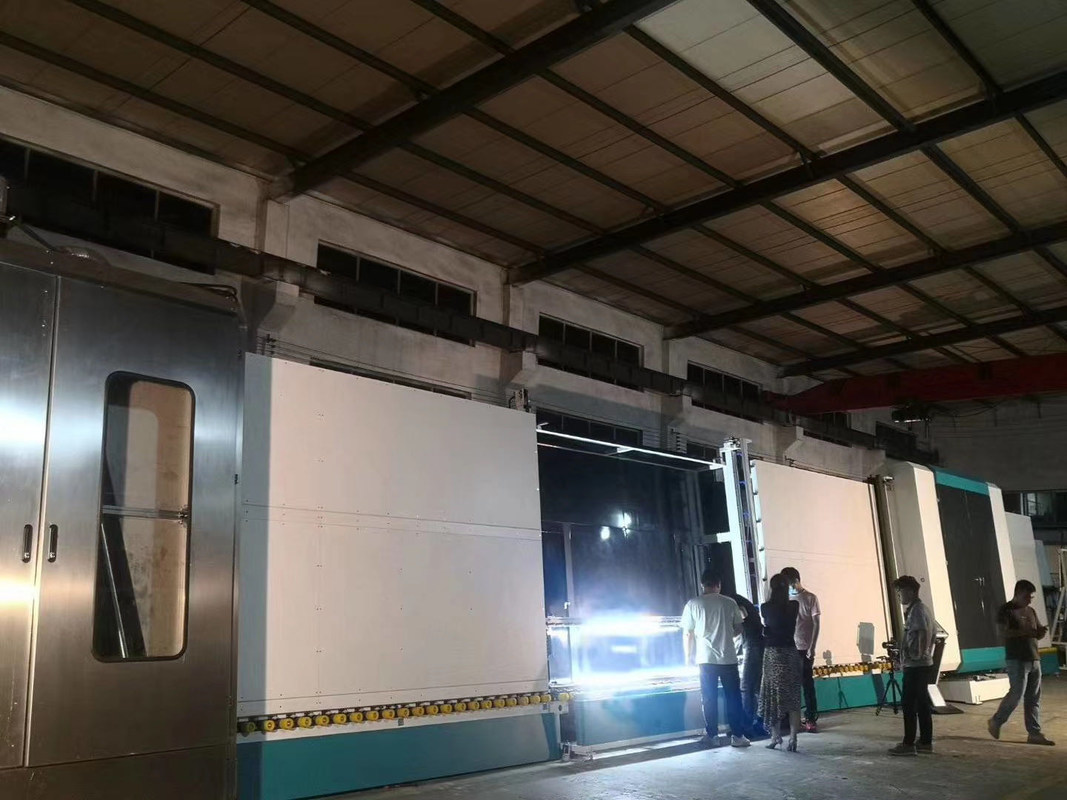

Automatic Glass Production Line Double Glazed Glass Production Line Hollow Glass Equipment
Insulatiing glass machine can complete the following functions: glass cleaning, aluminum frame placement, plain double glass, plain three glass, shaped glass and double glass second pressing.
Insulatiing glass machine is a special equipment in the production of aluminum strip insulating glass with the advantages of small footprint, high efficiency, reliable performance and convenient maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1, European design concept, simple and intelligent operation;
2, the well-known brand of major components in the world, ensure stable operation and long life;
3, Designed for processing high quality glass, such as reflective glass, Low-E glass, tempered glass and laminated glass;
4, large glass processing scale, various models and customization available;
5, large output capacity, 1,000pcs output in one working day;
6, Can be used for double layer, triple layer, stepping sheet and insulation glass of abnormal shape;
7, automatic argon air gas filling during the glass sheet installation process;
8, PLC control system, touch screen operation;
Electrical parameters
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
| JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | ||
| Power Supply | 380V,50HZ or customized |
| Total Power | 40 KW |
| Washing Speed | 2-10m/min |
| Max. working speed | 45m/min |
| Min.Glass size | 450*280mm |
| Max. Glass size |
2500*3200 2500*4500(second pressing) |
| Washing glass thickness | 3-15mm |
| Max. Insulating glass thickness | 50mm |
| Weight | 8000kg |
| Dimension (L*W*H) | 23600*3500*3700mm |
